Langzauner LTD. was established in 1924 and since that time has been engaged in the development and manufacturing of woodworking machines. Due to constant investments in the fields of technology and construction, the company developed into a modern, purposeful production factory. In addition to the standard machines, we manufacture special machines produced for the different technical areas. The long standing faith of our traders and customers is proof of Langzuaner's high-quality and good co-operation.
<click to enlarge - opens in new window>

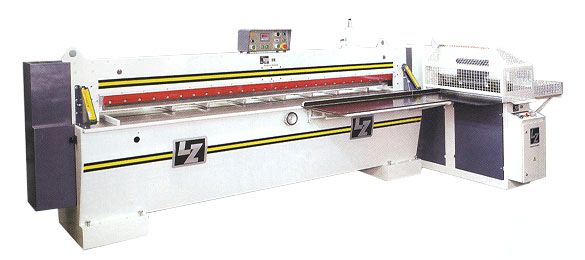

Pictured here is the Veneeer Guillotine with the optimum supplement, the FPS 800 for cross cutting single or stacked veneers. With its long lasting, specially hardened knives, this machine creates perfect cuts while requiring little maintenence.
Guillotine's Features:
- Rigid construction
- Motor driven parallel fence with digital indicators for absolute dimension and stripe dimension.
- Hydraulic drive
- Adjustable angle stop with individual degree graduation
- Clear Control Panel
- Safety equipment with two-hand operation and light guard
- Light filament to indicate the position of the cut
TECHNICAL SPECIFICATIONS
| Cutting Length | 2600 mm, 3100 mm, 3600 mm |
| Cutting Height | 50 mm |
| Max. Depth of Parallel Fence | 600 mm |
| Clamping Force | 6,000 kp |
| Shear Blade Force | 6,000 kp |
| Hydraulic Pump Motor | 4 kW, 380 V, 50 Hz |
| Feed Motor / Parallel Fence | 0.25 kW, 380 V, 50 Hz |
| Approx. Space Required (L x W x H) | 3400 mm x 1170 mm x 1500 mm |
