Langzauner LTD. was established in 1924 and since that time has been engaged in the development and manufacturing of woodworking machines. Due to constant investments in the fields of technology and construction, the company developed into a modern, purposeful production factory. In addition to the standard machines, we manufacture special machines produced for the different technical areas. The long standing faith of our traders and customers is proof of Langzuaner's high-quality and good cooperation.

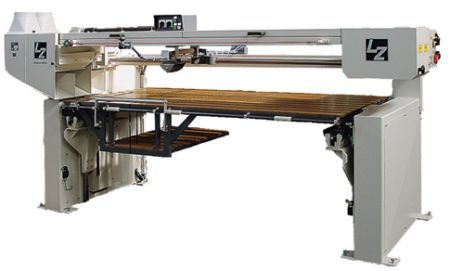

LZG-M-II-SY: METAL BELT SANDER WITH 2 BELTS & 2 TABLES




                                                   CLICK HERE FOR LZG-M-II-SY LITERATURE IN PDF FORMAT



The Langzauner LZG-S Belt Sanding Machine provides versatility with two belt speeds (11 & 22 m/s) and both clockwise and counterclockwise rotation. With its ease-of-use features like workpiece illumination and an optional brushing device, the LZG-S is a must-have for all types of woodworking professionals.



Mechanical Details

Table desk for table height adjustment. Controls belt speed & rotation as well as workpiece illumination. Drawer grinding equipment with extracted table insertion. Folding exhaust cover for improved exhaust effect when sanding long pieces. Closed drive wheel helps to avoid dust deposits. Optional brushing device for structuring, sanding, brushing, smoothing, and polishing of wooden surfaces. Swiveling brushing device also available. (Motor power: 1.3 kW)


Technical Specifications

Belt Sanding Motor 5.5 Kw
Belt Speeds Electronic Speed 5-30m/sec
Table Size 2500 / 3000 mm x 1000 mm
Drive Pulley Diameter 2 x 350mm each side
Throat Clearance Completely free Under The Table
Belt Length 6800 / 7800 mm
Belt Width 150 mm
Table Height Adjustment 350 mm via Electro Motor
Table Loading Weight 300 Kg
Sanding Pad Size 320x145 Automatically adjustable
